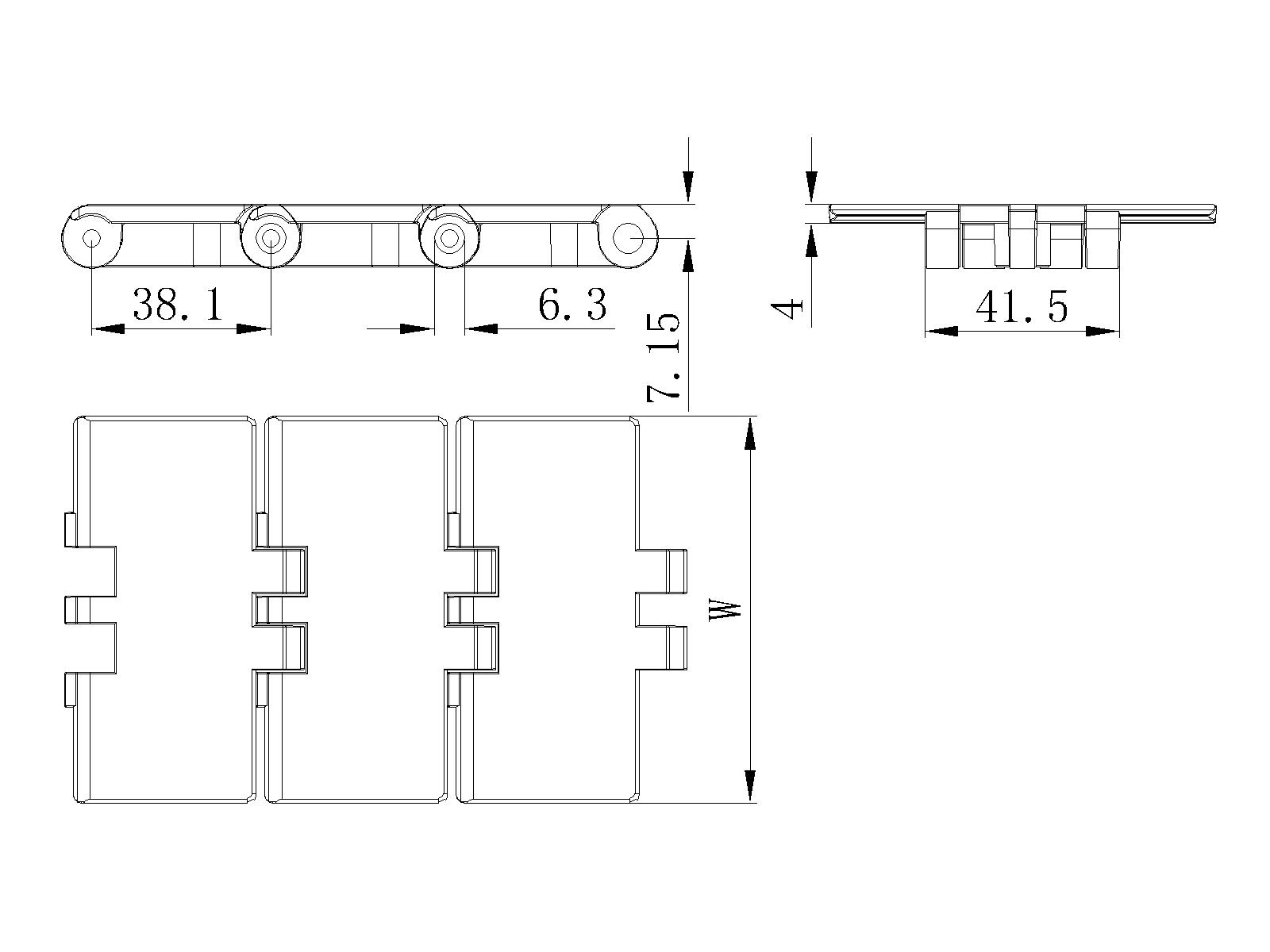

820 Series Single Hinge Chain
Plastic table top chain
820 Series Single Hinge Chain Main application: food and beverage industry such as transportation of bottles, cans etc
| Code | Width（mm） | Weight（Kg/m） | Backflex radius |
|---|---|---|---|
| 820-K250 | 63.5 | 0.69 | 50 |
| 820-K325 | 82.6 | 0.82 | 50 |
| 820-K350 | 88.9 | 0.87 | 50 |
| 820-K400 | 101.6 | 0.95 | 50 |
| 820-K450 | 114.3 | 1.00 | 50 |
| 820-K500 | 127 | 1.10 | 50 |
| 820-K600 | 152.4 | 1.20 | 50 |
| 820-K750 | 190.5 | 1.44 | 50 |

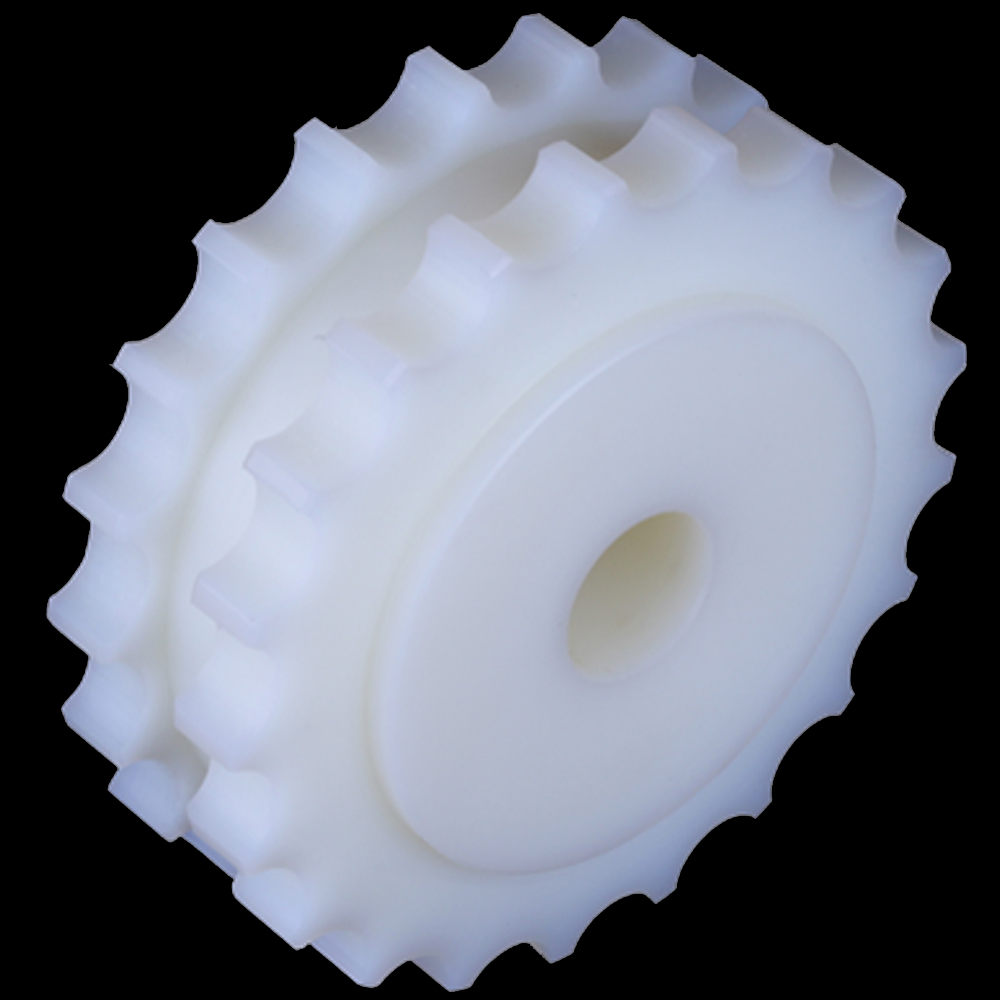

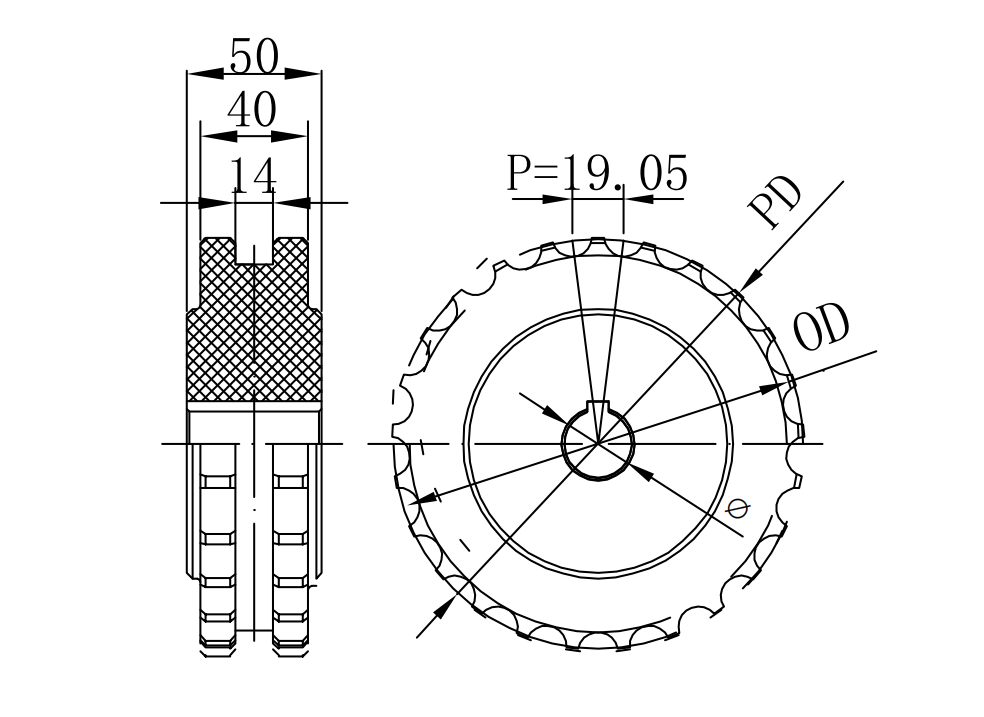

820 Series machined drive sprocket
NylonPA6, Machined,high precision,matching well Good strength, can be used in heavy load transport
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 15 | 91.6 | 92.2 | 20/25/30 |
| 17 | 103.7 | 104.7 | 20/25/30 |
| 19 | 115.7 | 117.0 | 20/25/30/35 |
| 21 | 127.8 | 129.0 | 25/30/35/40 |
| 23 | 139.9 | 140.7 | 25/30/35/40 |
| 25 | 152.0 | 152.0 | 25/30/35/40 |

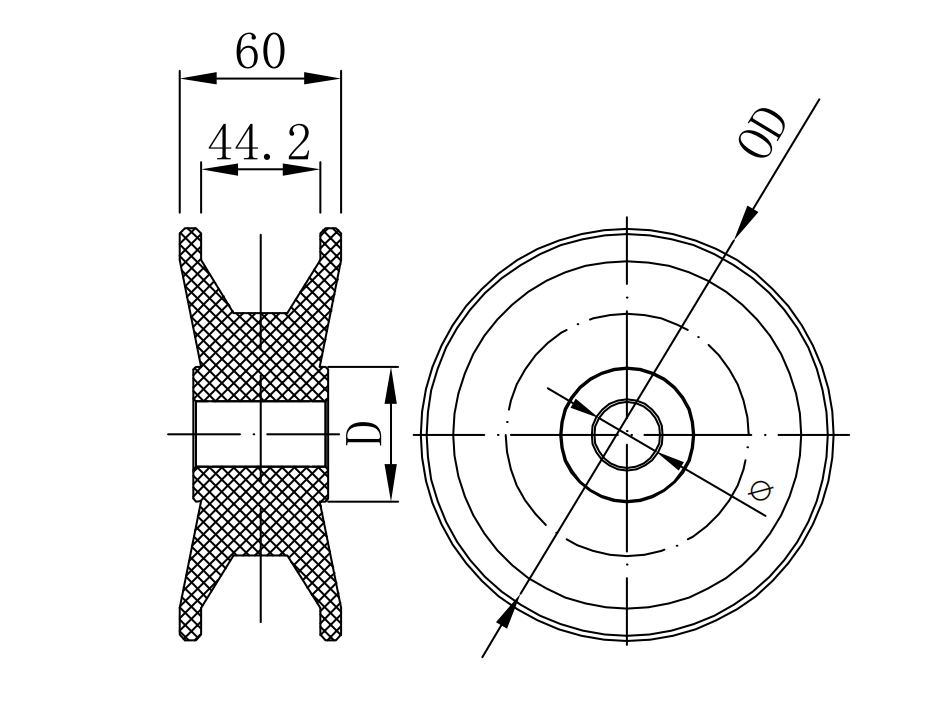

820 Series machined idler sprocket
NylonPA6, Machined,high precision,matching well Good strength, can be used in heavy load transport
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 15 | 50 | 93.0 | 20/25/30 |
| 17 | 50 | 105.0 | 20/25/30 |
| 19 | 60 | 117.0 | 20/25/30/35 |
| 21 | 70 | 131.0 | 25/30/35/40 |
| 23 | 80 | 140.7 | 25/30/35/40 |
| 25 | 90 | 155.0 | 25/30/35/40 |

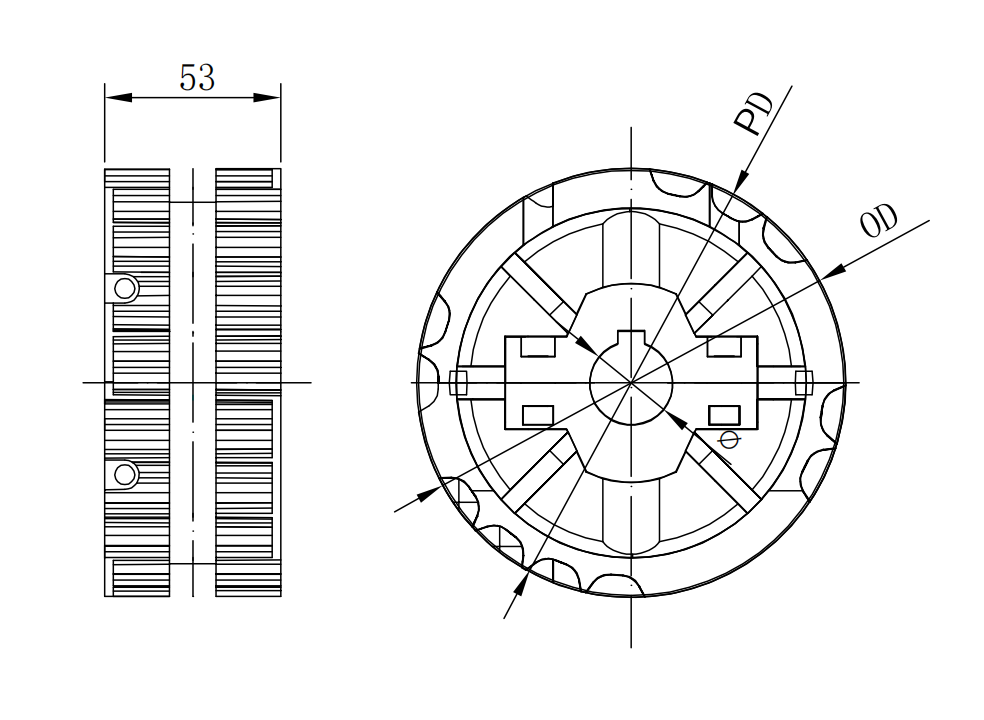

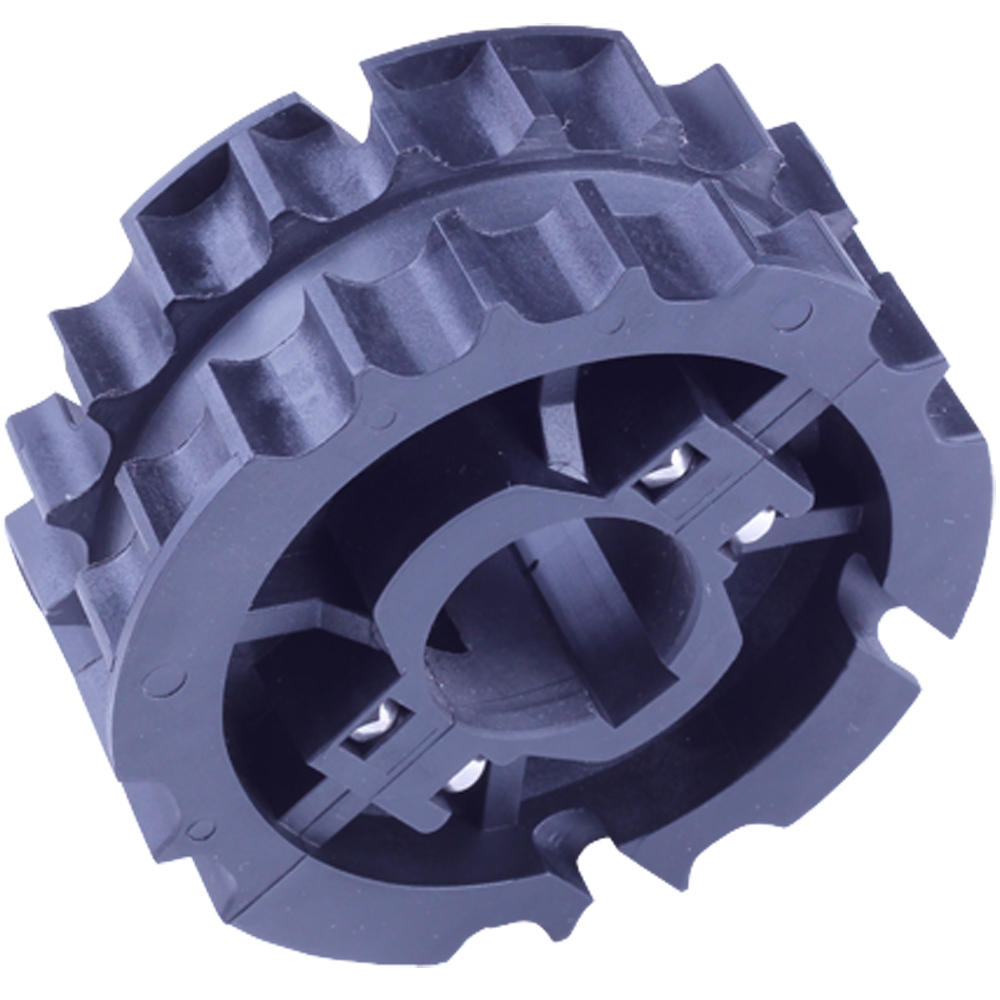

820 Series molded split drive sprocket
Material: Nylon with glass fiber, excellent mechanical strength and good wear resistance
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 19 | 115.7 | 117.0 | 20/25/30/35 |
| 21 | 127.8 | 129.0 | 25/30/35/40 |
| 23 | 139.9 | 140.7 | 25/30/35/40 |
| 25 | 152.0 | 152.0 | 25/30/35/40 |

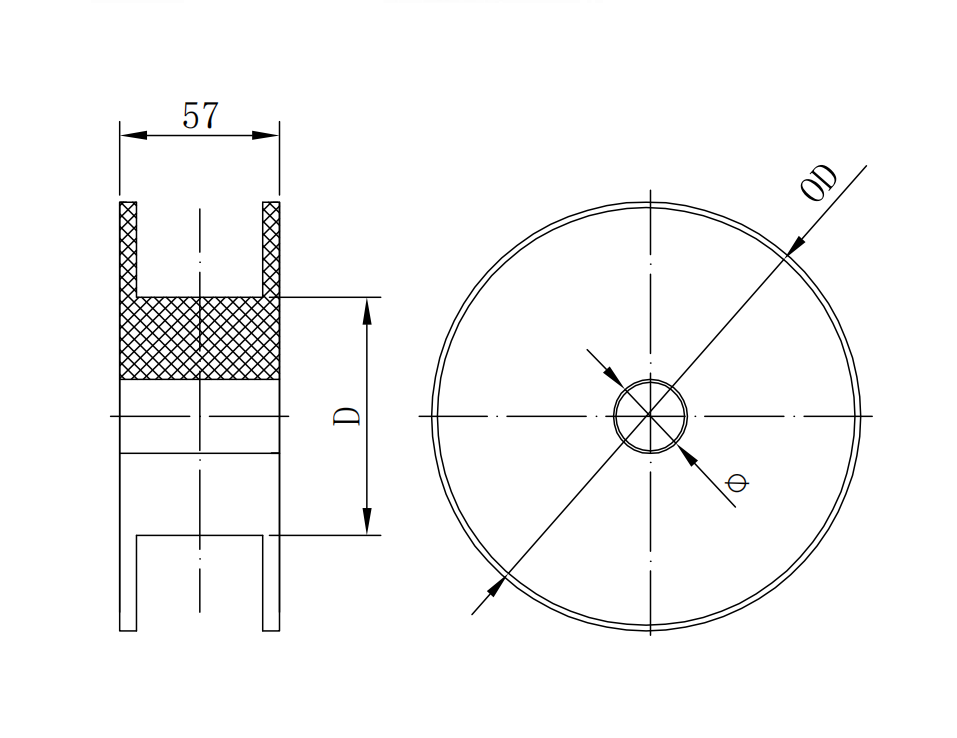

820 Series molded split idler sprocket
Material: Nylon with glass fiber, excellent mechanical strength and good wear resistance
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 19 | 60 | 117.0 | 20/25/30/35 |
| 21 | 70 | 131.0 | 25/30/35/40 |
| 23 | 80 | 140.7 | 25/30/35/40 |
| 25 | 90 | 155.0 | 25/30/35/40 |
820 Series Single Hinge Chain
Chain Mat：POM
Pin Mat：Stainless Steel
Color：Brown
Temprature：-30℃～+90℃
Maximum Speed：lubricant 50m/min；Desiccant 30m/min
Working Load：(25℃)1230N,Maximum length 12m
Main application: food and beverage industry such as transportation of bottles, cans etc
