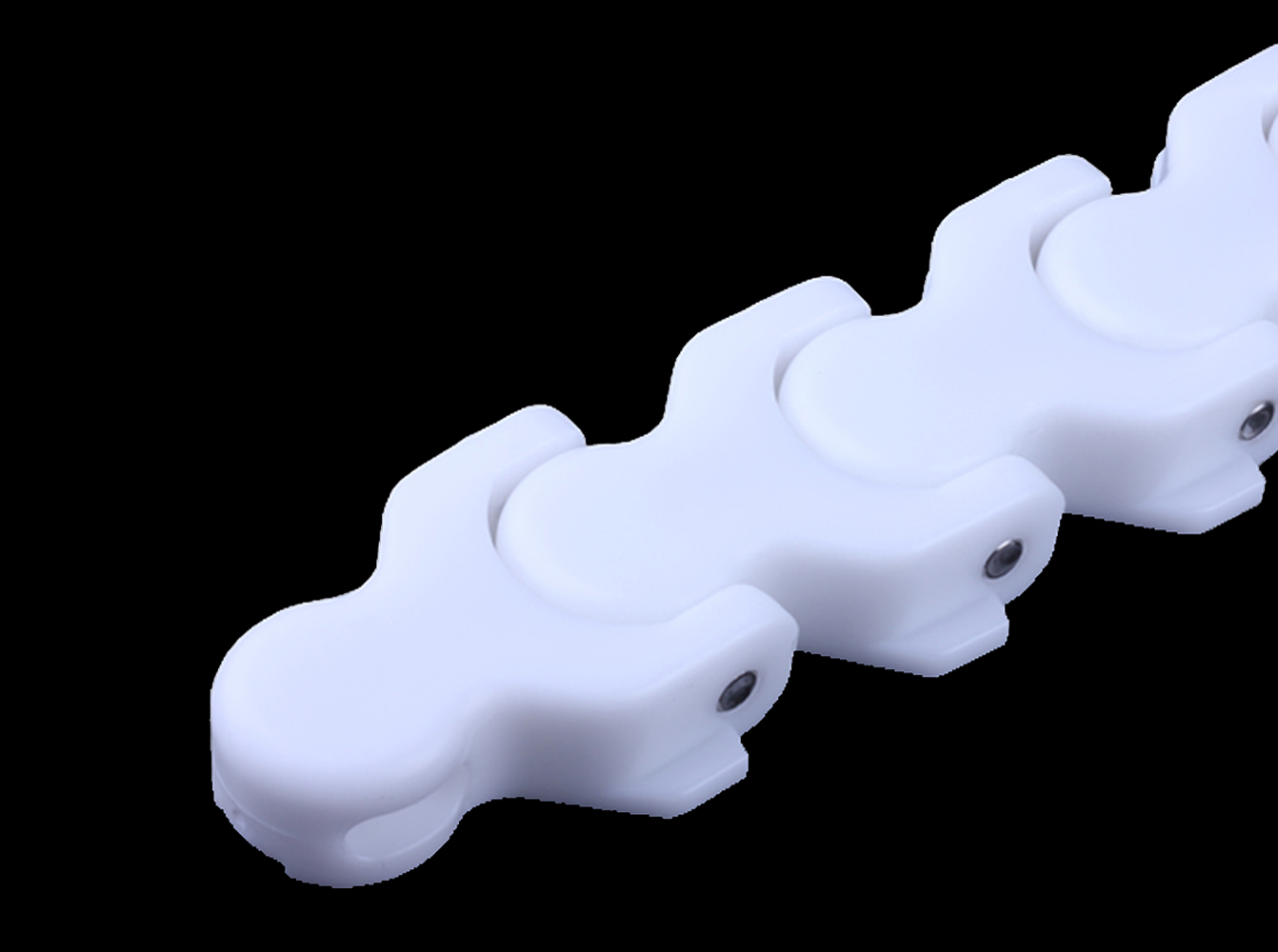

1701/1701TAB Multiflex chains
Multiflex chains
1701/1701TAB Multiflex chains Suitable for turntable conveyor lines for products such as pallets and crates. The conveyor line is easy to clean. Chain-type pin connection, allowing for adding or replacing chain links as needed. For any other requirements (applications), please feel free to call us for consultation.

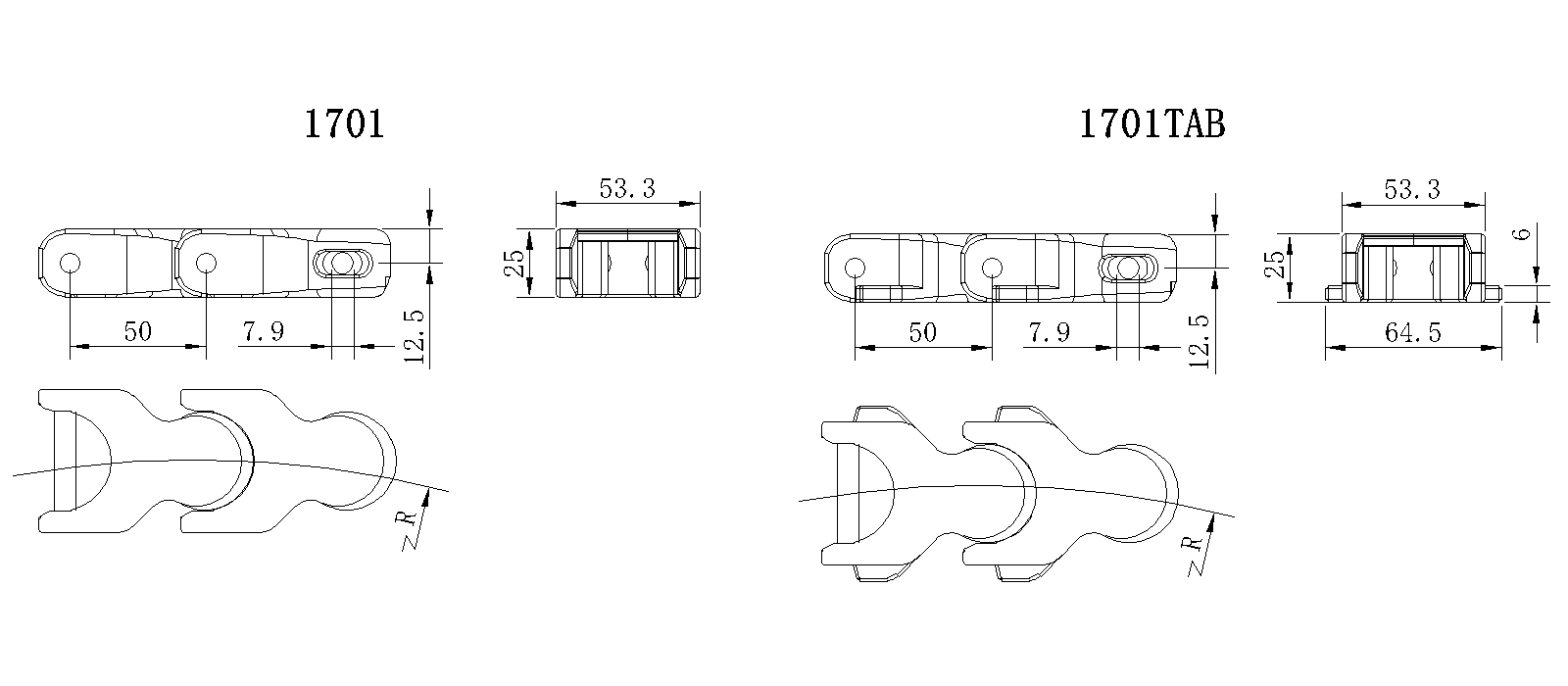

| Code | Width（mm） | Weight（Kg/m） | Backflex R（mm） | Min. radius（mm） |
|---|---|---|---|---|
| 1701 | 55 | 1.37 | 75 | 150 |
| 1701TAB | 55 | 1.48 | 75 | 150 |

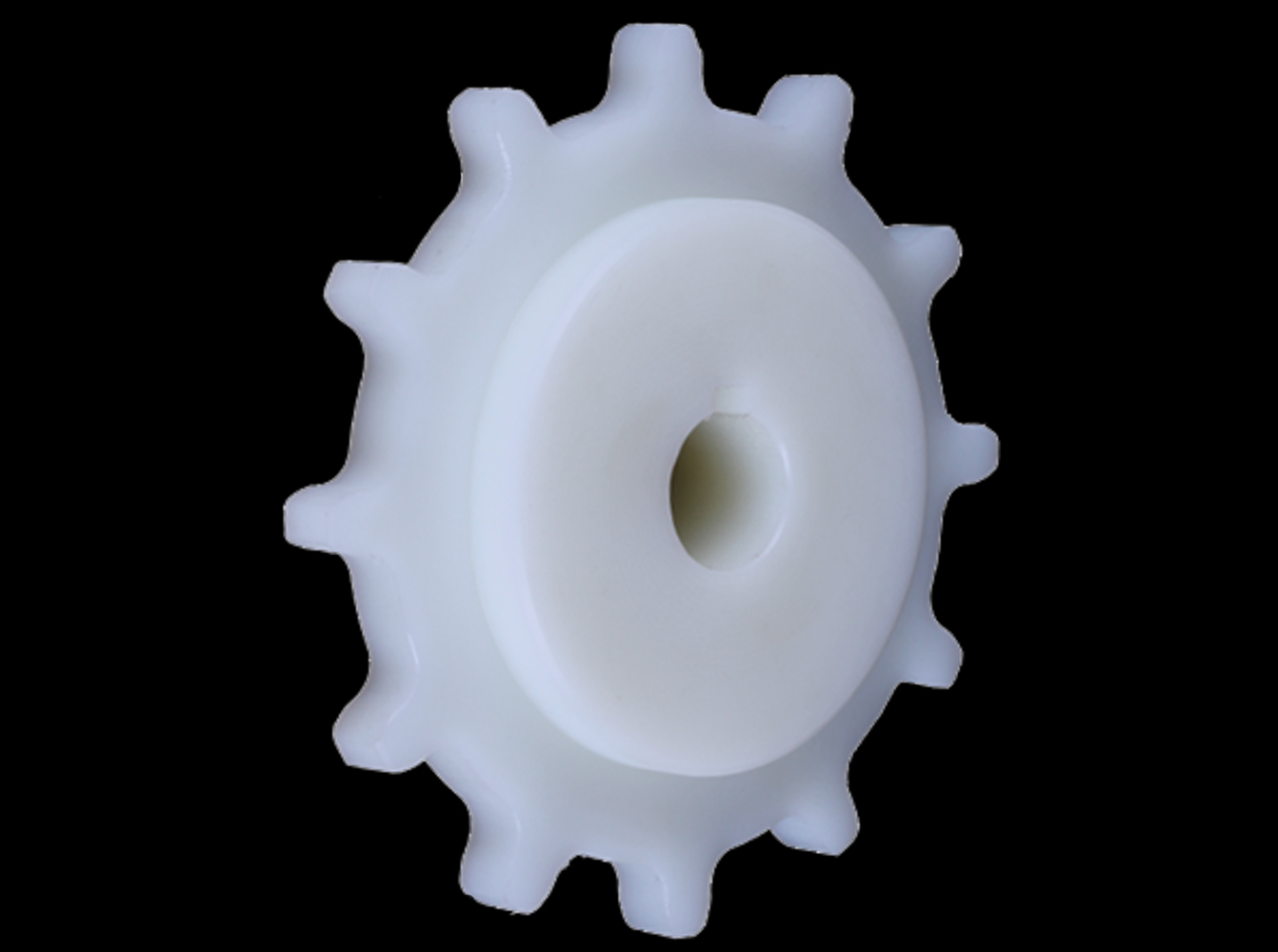

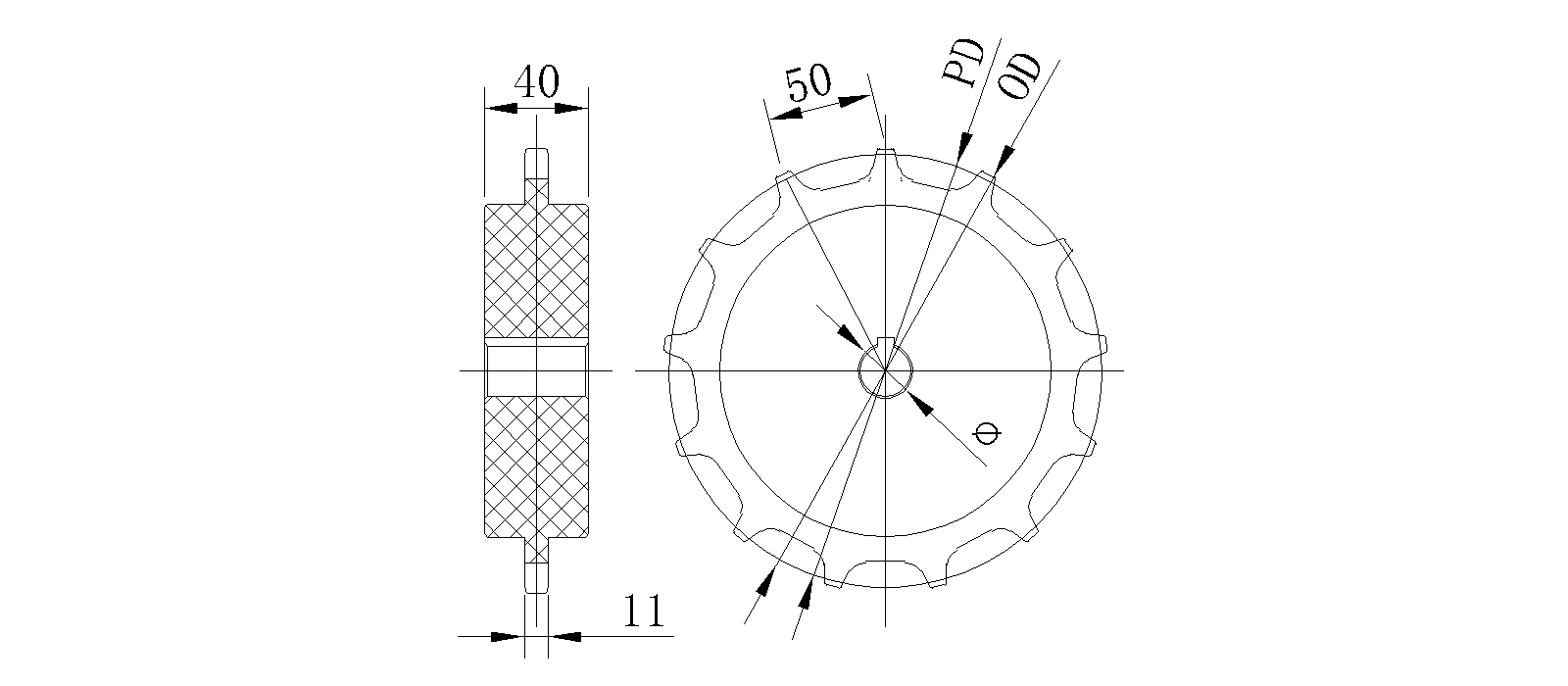

1701/1701TAB Series machined drive sprocket
NylonPA6, Machined,high precision,matching well Good strength, can be used in heavy load transport
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 8 | 130.66 | 133 | 25/30/35/40 |
| 10 | 161.8 | 164 | 20/25/30/35 |
| 12 | 193.19 | 196 | 25/30/35/40 |

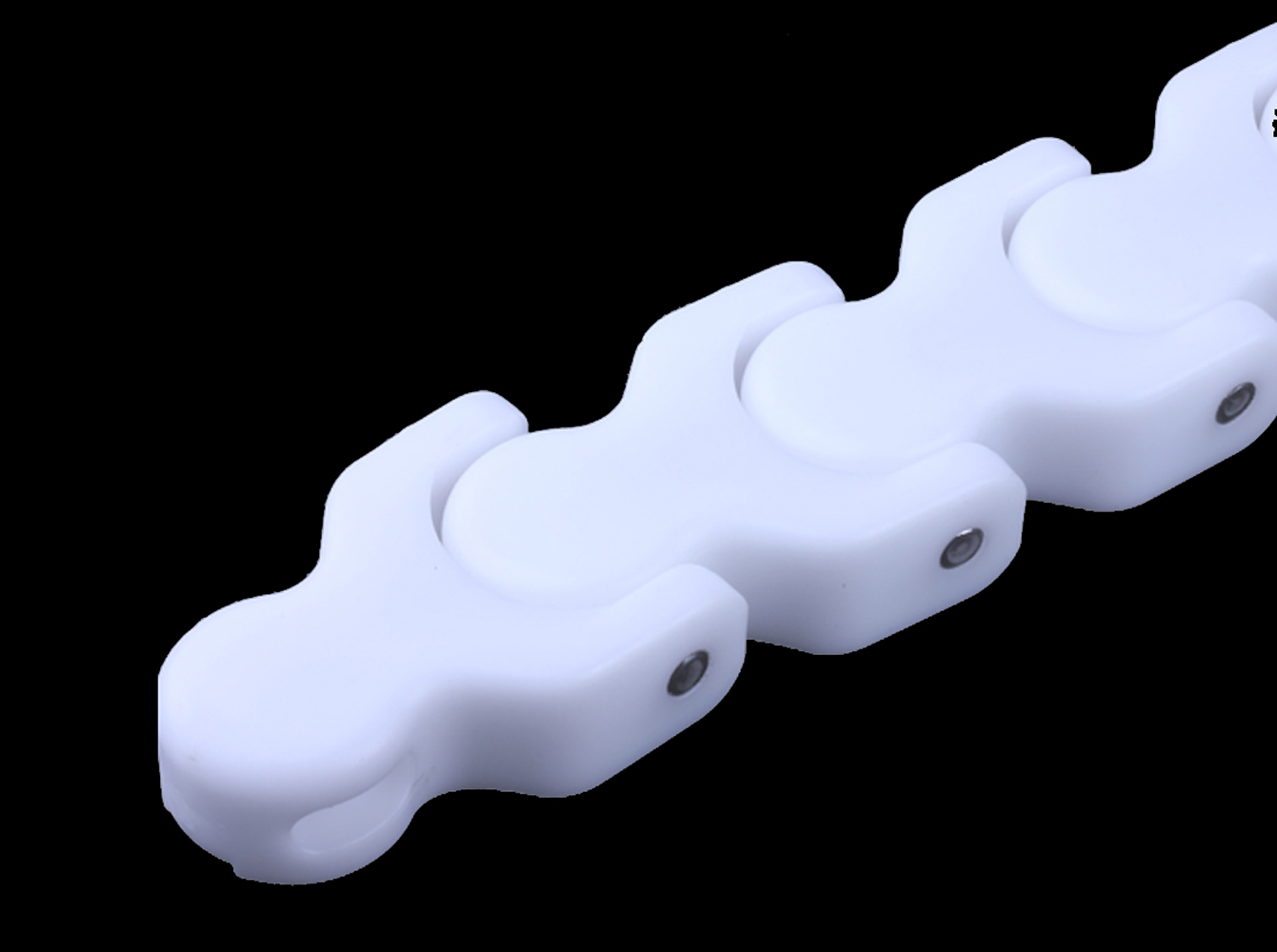

1701/1701TAB Multiflex chains
Chain Mat：POM
Pin Mat：Stainless Steel
Color： White
Temprature：-30℃～+90℃
Maximum Speed：lubricant 6 0m/min；Desiccant 3 4 0m/min
Working Load：(25℃) 4000 N,Maximum length 1 0 m
Suitable for turntable conveyor lines for products such as pallets and crates.
The conveyor line is easy to clean.
Chain-type pin connection, allowing for adding or replacing chain links as needed.
For any other requirements (applications), please feel free to call us for consultation.
