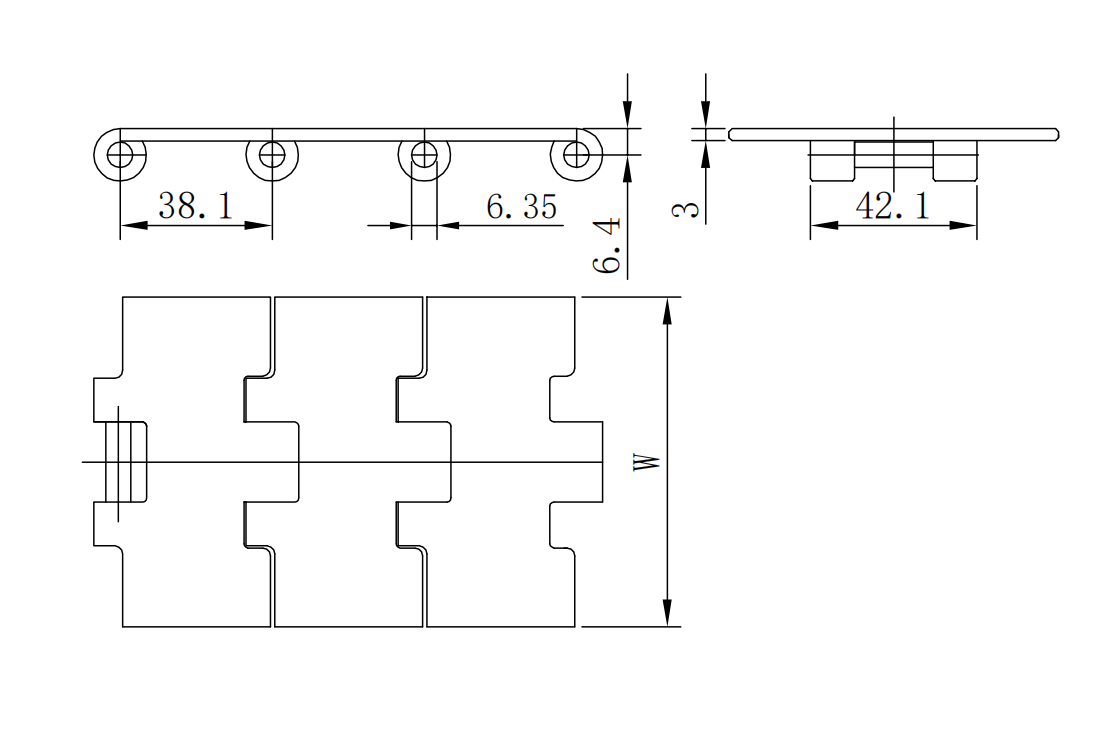

SS812 Straight running steel chains-Single hinge
Metal flat top chain
SS812 Straight running steel chains-Single hinge Main application: Suitable for straight conveying lines of metal products, glass products, etc.
| Code | Width（mm） | Weight（Kg/m） | Backflex radius |
|---|---|---|---|
| SS512-K217 | 25.4*55 | 2.29 | |
| SS512-K250 | 25.4*63.5 | 2.42 | 50 |
| SS512-K283 | 25.4*71.5 | 2.84 | 50 |
| SS812-K217 | 38.1*55 | 1.50 | 50 |
| SS812-K250 | 38.1*63.5 | 1.58 | 50 |
| SS812-K300 | 38.1*76.2 | 2.30 | 50 |
| SS812-K325 | 38.1*82.6 | 2.49 | 50 |
| SS812-K350 | 38.1*88.9 | 2.68 | 50 |
| SS812-K400 | 38.1*101.6 | 2.97 | 50 |
| SS812-K450 | 38.1*114.3 | 3.14 | 50 |
| SS812-K500 | 38.1*127 | 3.35 | 50 |
| SS812-K600 | 38.1*152.4 | 4.10 | 50 |
| SS812-K750 | 38.1*190.5 | 4.74 | 50 |

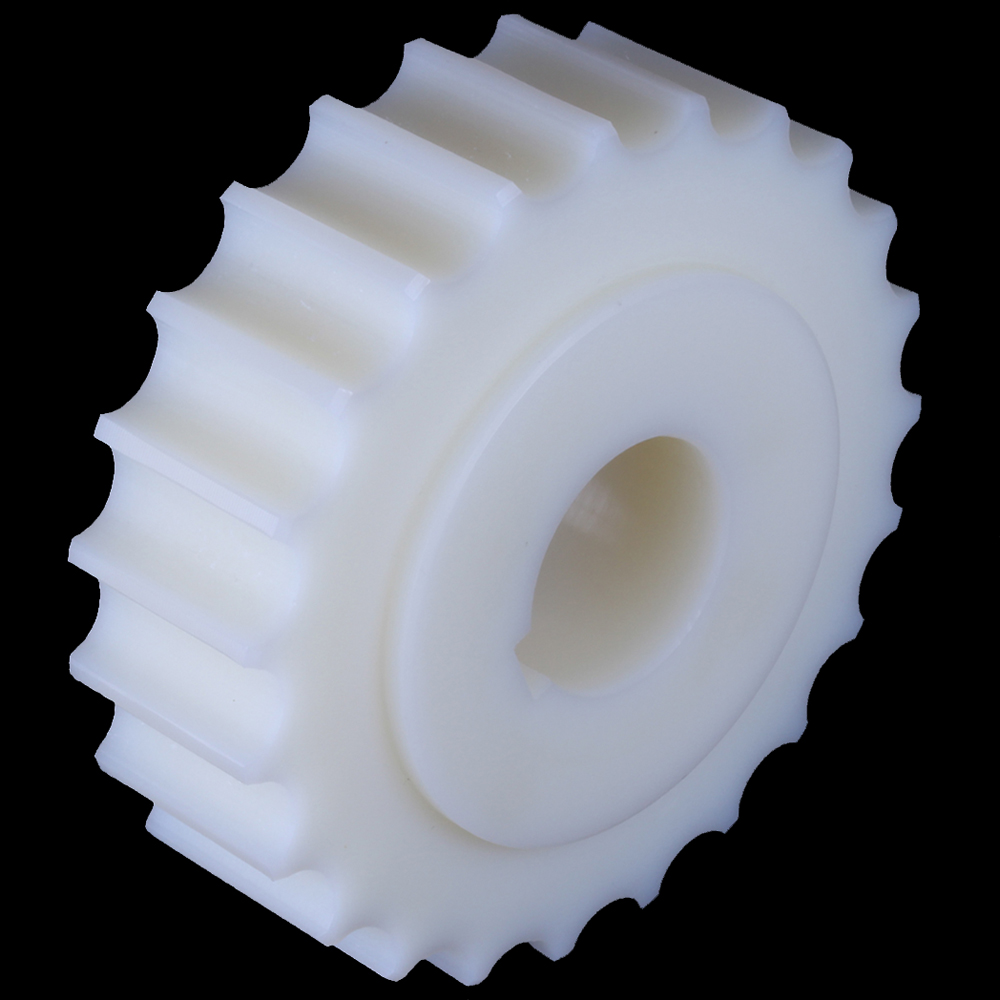

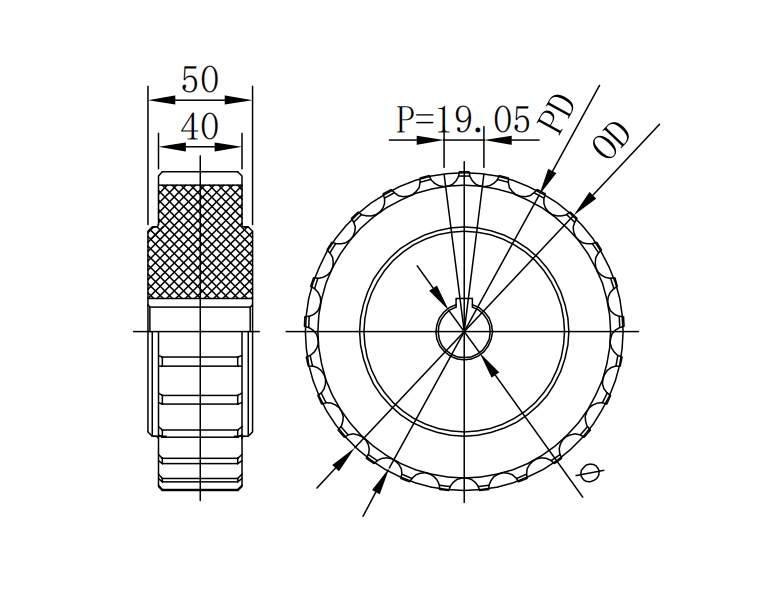

SS812 Series machined drive sprocket
NylonPA6, Machined,high precision,matching well Good strength, can be used in heavy load transport
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 15 | 91.6 | 92.2 | 20/25/30 |
| 17 | 103.7 | 104.7 | 20/25/30 |
| 19 | 115.7 | 117.0 | 20/25/30/35 |
| 21 | 127.8 | 129.0 | 25/30/35/40 |
| 23 | 139.9 | 140.7 | 25/30/35/40 |
| 25 | 152.0 | 152.0 | 25/30/35/40 |

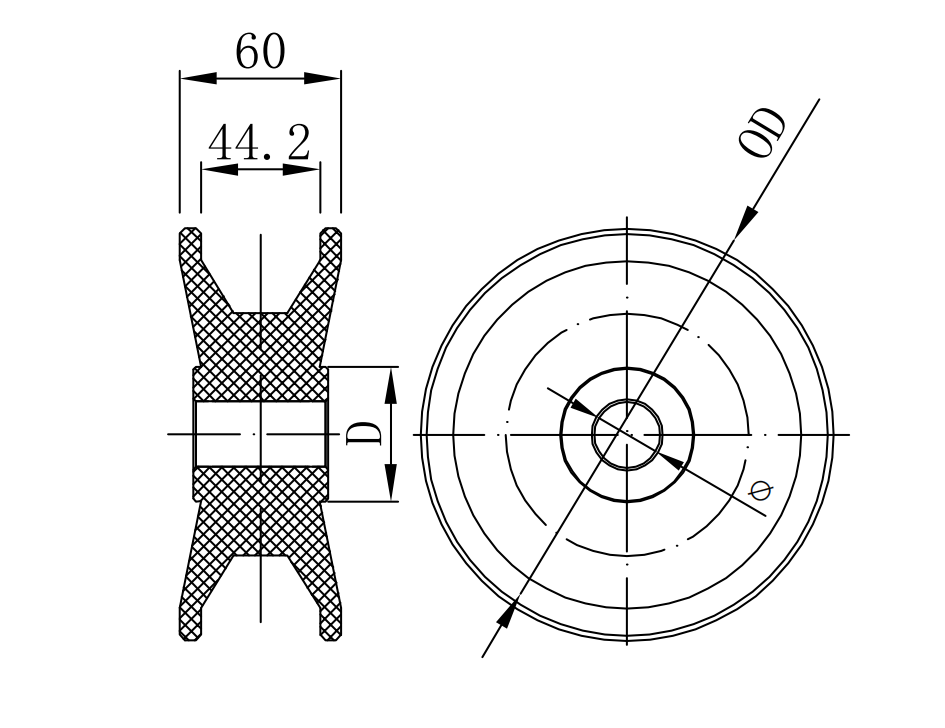

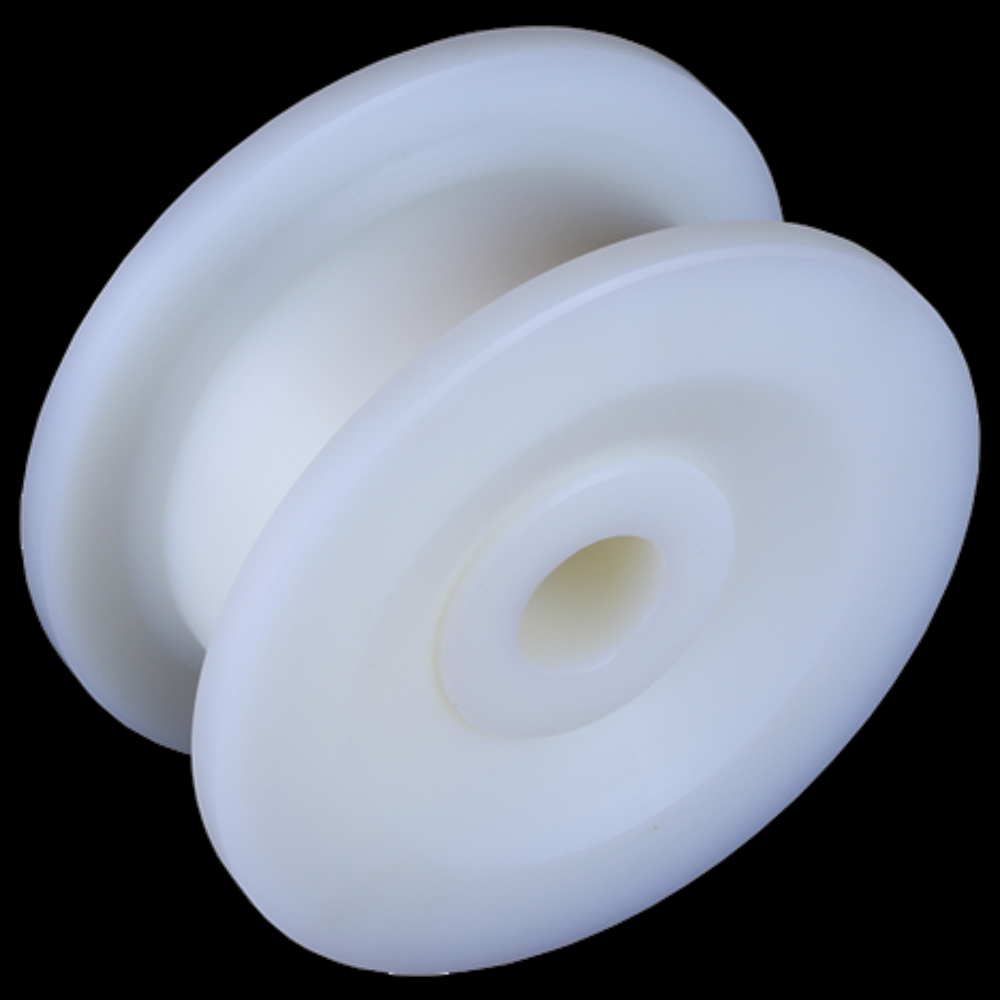

SS812 Series machined idler sprocket
NylonPA6, Machined,high precision,matching well Good strength, can be used in heavy load transport
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 15 | 50 | 93.0 | 20/25/30 |
| 17 | 50 | 105.0 | 20/25/30 |
| 19 | 60 | 117.0 | 20/25/30/35 |
| 21 | 70 | 131.0 | 25/30/35/40 |
| 23 | 80 | 140.7 | 25/30/35/40 |
| 25 | 90 | 155.0 | 25/30/35/40 |

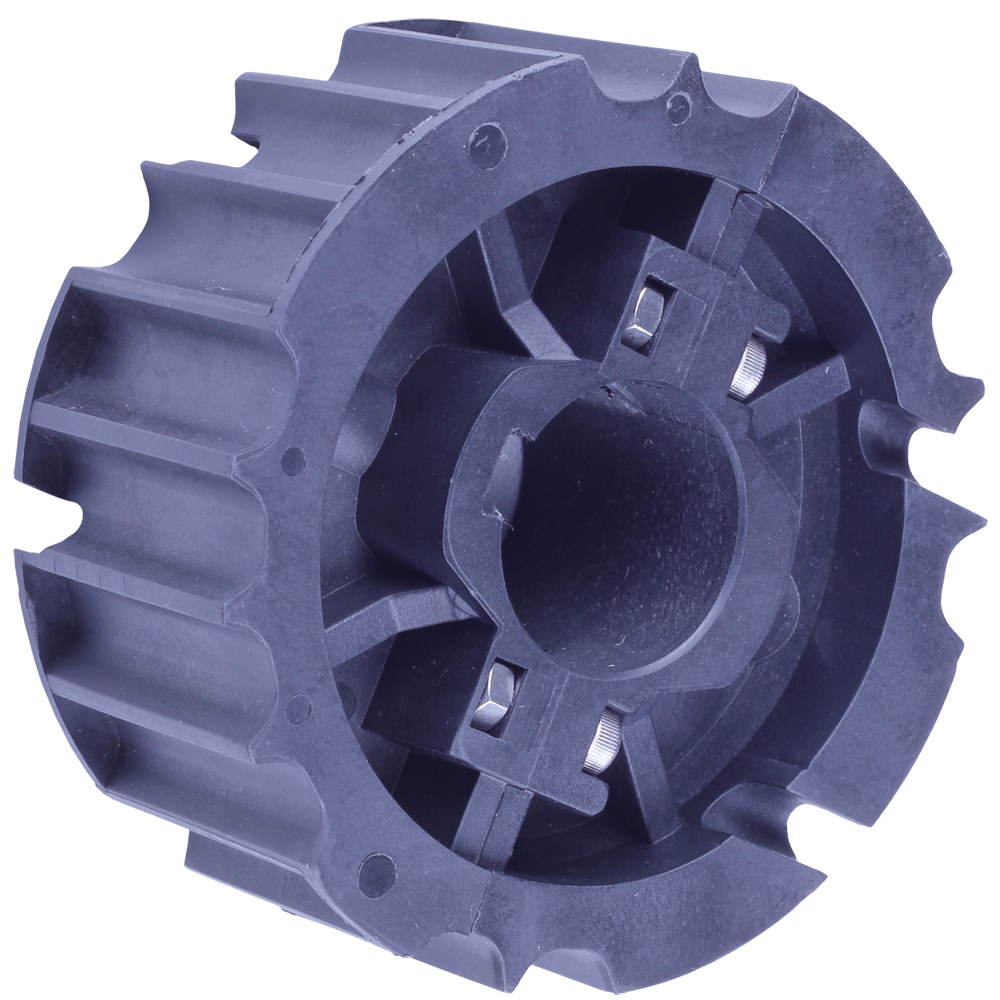

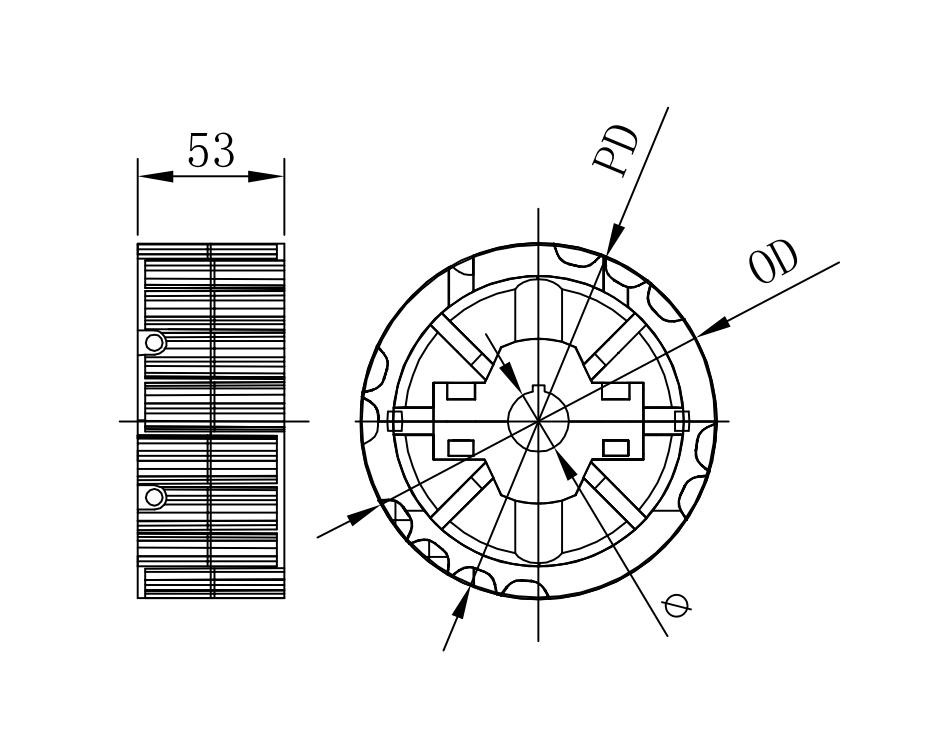

SS812 Series molded split drive sprocket
Nylon with glass fiber, excellent mechanical strength and good wear resistance
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 19 | 115.7 | 117.0 | 20/25/30/35 |
| 21 | 127.8 | 129.0 | 25/30/35/40 |
| 23 | 139.9 | 140.7 | 25/30/35/40 |
| 25 | 152.0 | 152.0 | 25/30/35/40 |
SS812 Series molded split idler sprocket
Material: Nylon with glass fiber, excellent mechanical strength and good wear resistance
| Teeth | PD(mm) | OD(mm) | Bore(mm) |
|---|---|---|---|
| 19 | 60 | 117.0 | 20/25/30/35 |
| 21 | 70 | 131.0 | 25/30/35/40 |
| 23 | 80 | 140.7 | 25/30/35/40 |
| 25 | 90 | 155.0 | 25/30/35/40 |
SS812 Straight running steel chains -Single hinge
Body Mat： SUS420/SUS304
Pin Mat： SUS420/SUS304
Maximum Speed：lubricant 50m/min；Desiccant 30m/min
Working Load：(25℃) 2250 N,Maximum length 12m
Main application: Suitable for straight conveying lines of metal products, glass products, etc.
